3meter 35mm2 welding cable with 500A electrode holder
-
3 meter 35mm2 earth cable with 500A earth clamp
Performance and Features: Parameter/Specification
-
Adopting 100KHz MOSFET inverter technology, extremely reliable.
-
Adopting high-frequency increasing voltage arc striking technology, easy arc striking, well recognition with users.
-
Unique output characteristics design, suitable for wire filling welding, perfect welding results.
-
Auto-protection against over-voltage, over loading and over-heat, reliable and durable.
-
Ideal for small and medium steel fabrications.
|
Model Item |

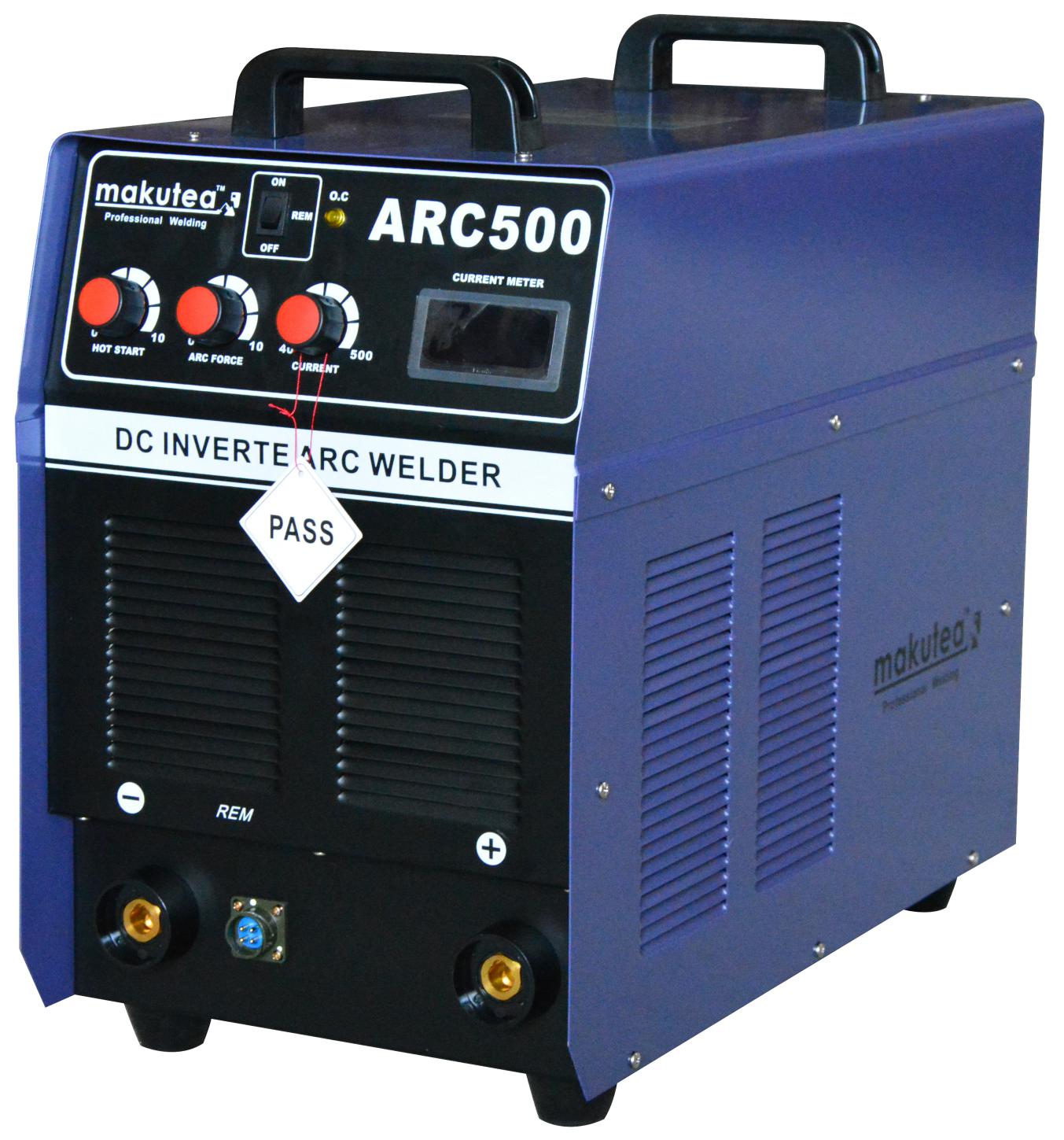

ARC 500 |
|
Voltage(V) |
AC415V ±15% |
|
Frequency(Hz) |
50-60 |
|
Input Power(KVA) |
14 |
|
No-load Voltage(V) |
70 |
|
Current Range(A) |
20-500 |
|
Rated Duty Cycle |
80% |
|
Applied Welding Rod(mm) |
1.6-6.0 |
|
Power Factor |
0.93 |
|
Efficiency(%) |
95 |
|
Insulation Grade |
F |
|
Housing Protection Grade |
IP21S |
|
Weight(Kg) |
30 |
|
(L*W*H)(mm) |
650*400*543 |
|
Specification |
|
|
Capacitor |
470uF/400V*8 |
|
MOSFET |
K3878*40 |
|
Output Rectifier |
XS4202*32 |
